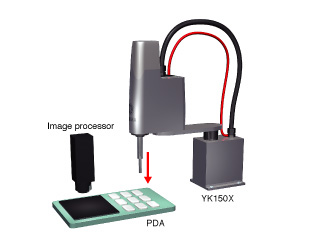

Finished product inspection, touch-panel type evaluation machine
Finished product function test.
Developed software evaluation.
Push-button type quality check.
Full line-up from YK120X to YK1200X is unrivaled by other manufacturers and can cope with various systems.
Space saving.
Using SCARA, judgment is made through image processing by pushing each button.

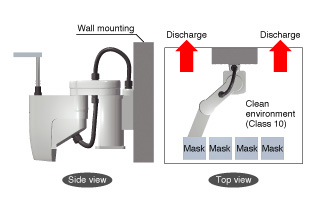

Mask for wafer being conveyed
Wafer mask replaced from the stocker.
Clean specification plus inverse structure prevents the driving part from coming over the workpiece.
If the cylindrical coordinate type robot is used, a running axis is necessary for this application. However, if SCARA with the interpolation function is used, the fixed type is usable.
Machine to convey and stack tall workpieces
Tall workpieces stacked by utilizing long Z axis.
Use of SCARA can cope with the Z axis long stroke as a quasi-standard. YK250 to 400X Quasi-standard Z axis stroke: 300mm
YK500 to 600X Quasi-standard Z axis stroke: 600mm
YK700 to 1000X Quasi-standard Z axis stroke: 800mm
Advantages of use of SCARA: speed of XY axis and space saving installation.

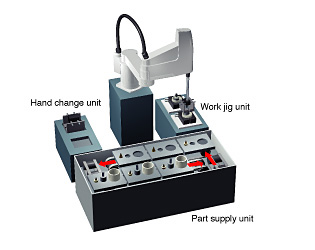

Assembly cell ( independent cell )
Base machine of independent type assembly cell.
Optimum for multi type variable quantity production.
Setting up reception places forms a construction of multiple number of cells.

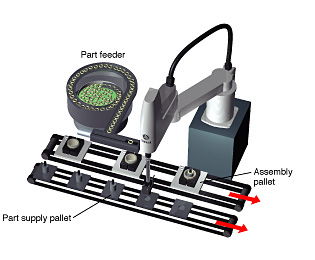

Assembly cell ( line cell )
Base machine of line type assembly cell.
Utilization of advantages of SCARA with a wide operation range.
It is possible to construct a line with free length by connection.

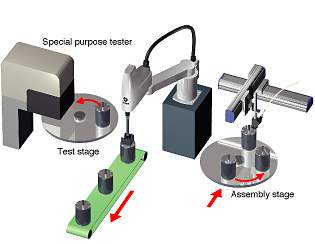

Assembly cell ( Handling unit for special purpose tester )
When placed between 2 turn tables, handling of both tables is possible.
Utilization of advantages of SCARA which has a wide operation range.
